LYK8-VGA

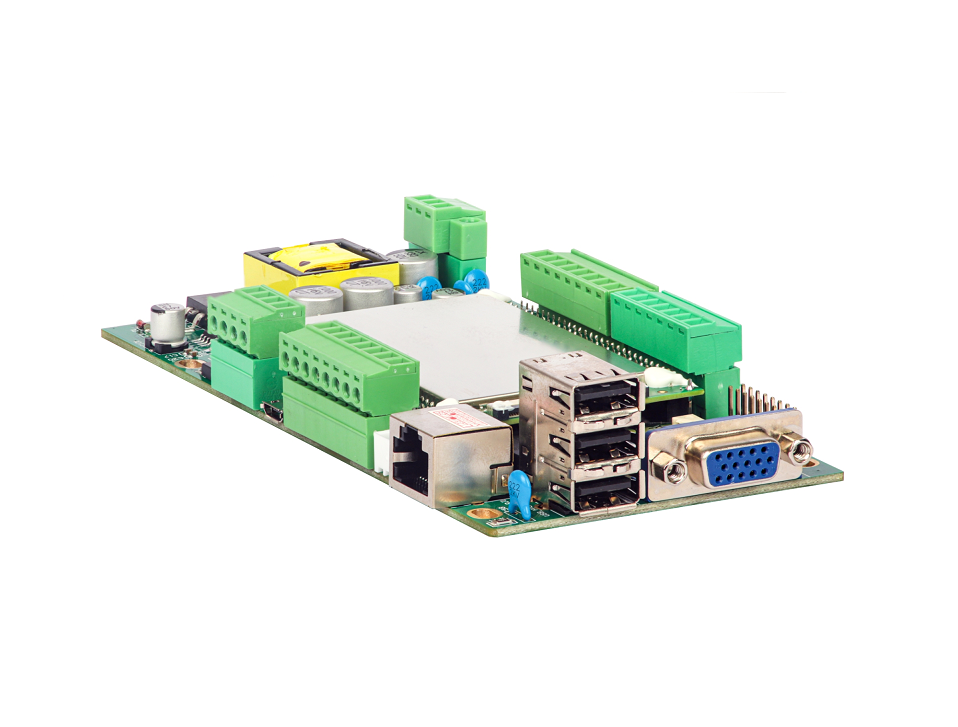

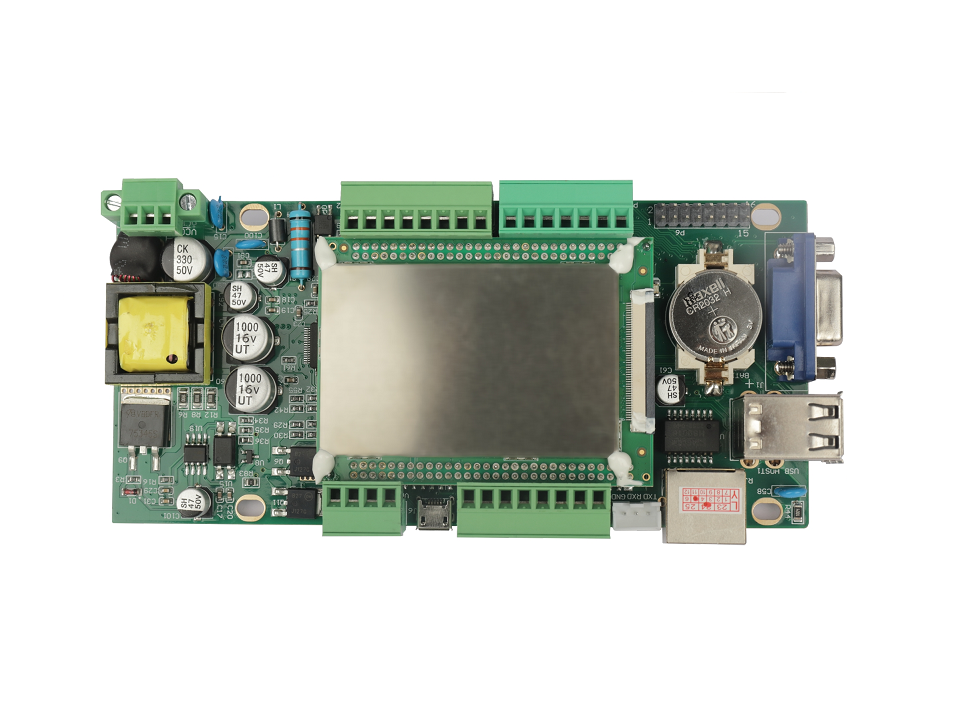

Pneumatic Marking Control Card: LYK8-VGA
Parameters
Processor: embedded 4-core Cortex-A9, maximum frequency 1.6GHz
RAM:1GB, DDR3
Solid state storage FLASH: 8GB EMMC SSD (on-board soldering, non-pluggable)
USB: 3
Serial port: 1
Drive interface: X,Y,Z three-axis pulse control
Expansion IO:3 inputs, 2 outputs
Ethernet: 1
Click to download:
LYK8-VGA hardware user's manual
