LYK33-070

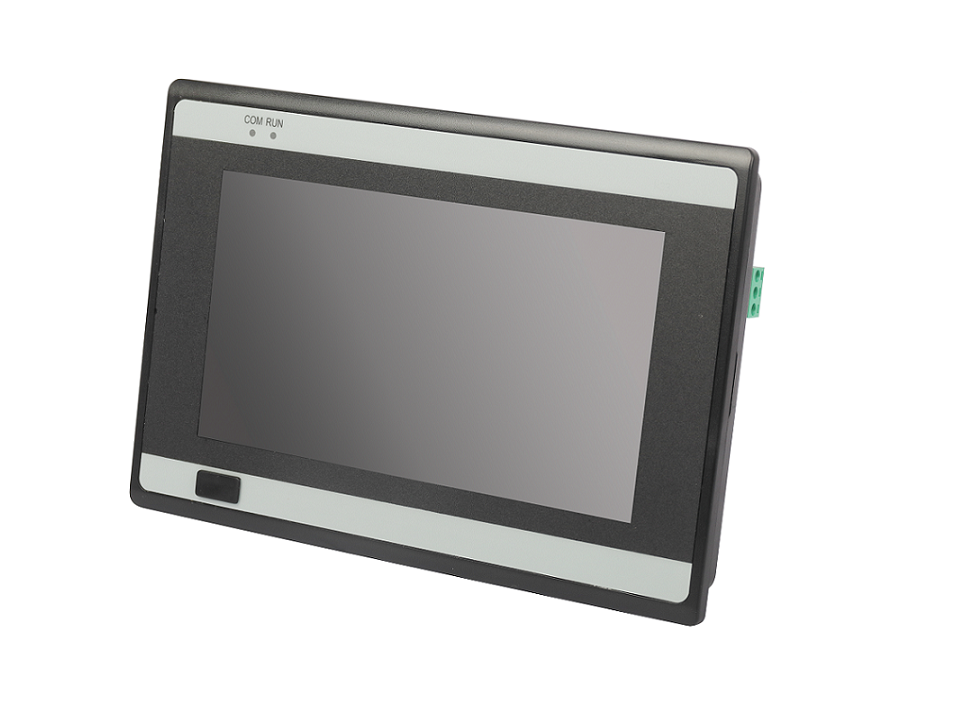

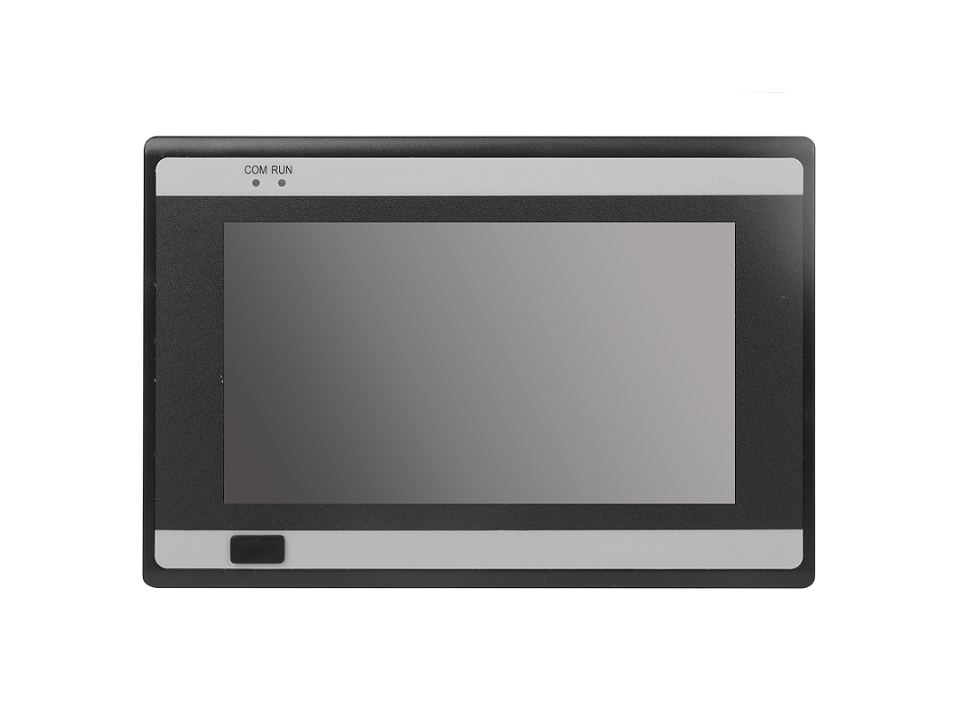

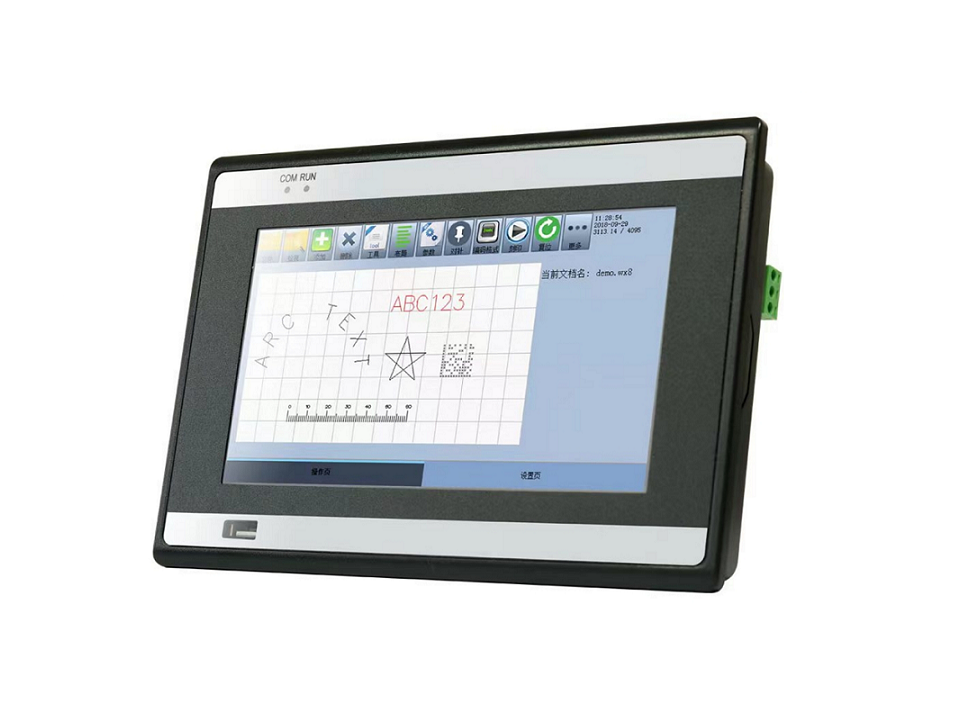

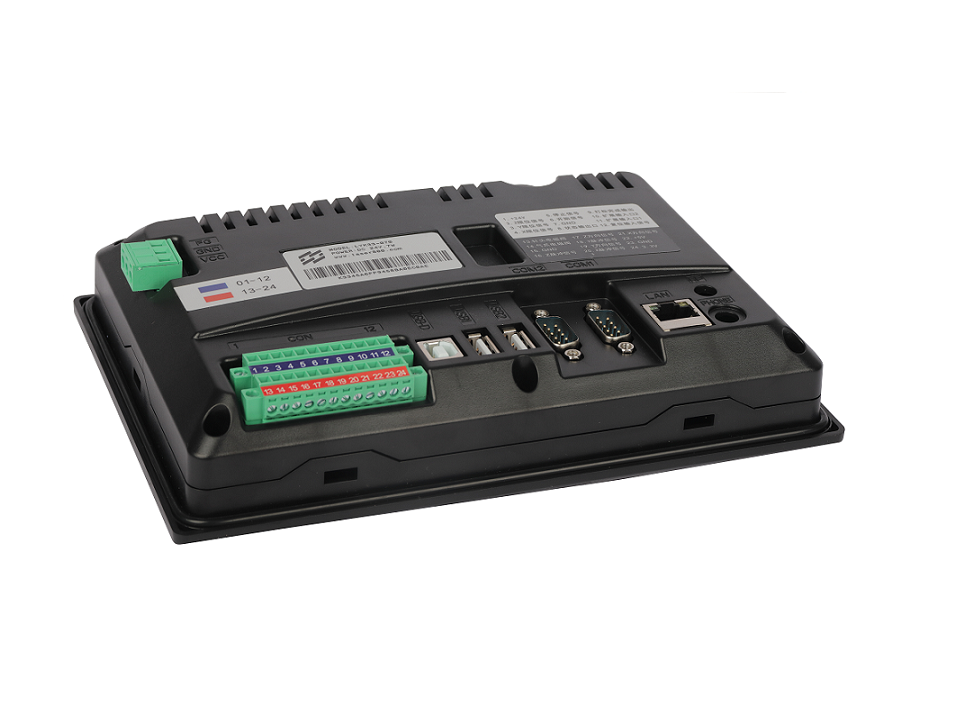

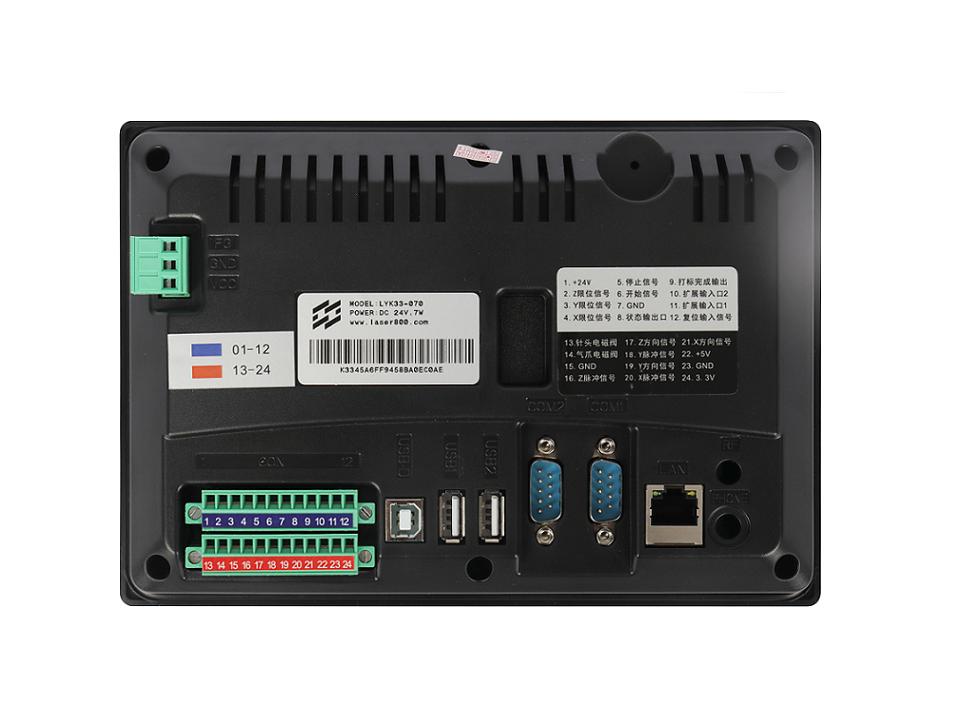

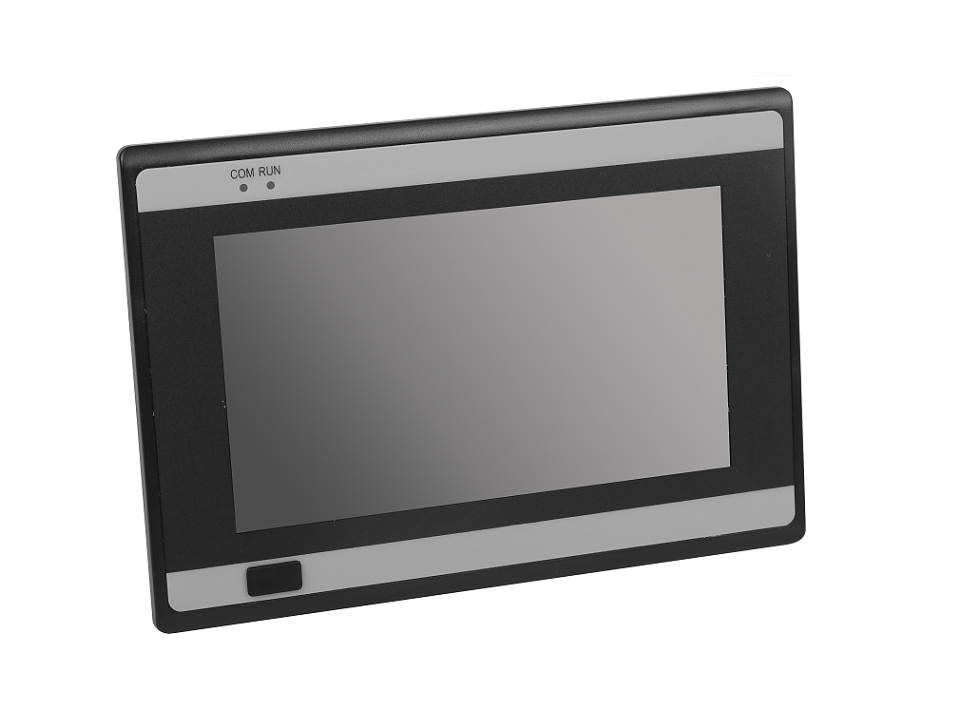

Pneumatic Marking Controller: LYK33-070



Parameters

CPU: Embedded 4-core Cortex-A9, maximum frequency 1.6GHz

RAM: 1GB, DDR3

Solid State Storage FLASH: 512M

Display Size: 7 inches

Display Resolution: 800*480

Serial Port: 2

USB: 2

Ethernet:1

Cabinet Opening Size: 196*132mm

Communication: supports WIFI, Bluetooth



Click to download:

LYK33-070 hardware user's manual

LYK33-070 software user's manual

LYK33-070 wiring diagram
